IdeaBall



Master thesis by Clio Kakoulli, supervised by René Bohne

About

IdeaBall is a physical prototype for controlling turn-taking and recording brainstorming sessions. It is used in conjuction with the IdeaBallNavigator, a desktop application for logging and displaying information gathered by the IdeaBall.

Download thesis

You can download the PDF version of the thesis here.

IdeaBall - Hardware


Communication between the IdeaBall and IdeaBallNavigator is accomplished by a bluetooth connection. Turn taking is recognized by recording a change in the RFID tag read. The IdeaBall provides audio feedback to signal the change in RFID tags read, and consequently that the ball changed hands. Interaction between users and the IdeaBall is achieved by shaking the ball.

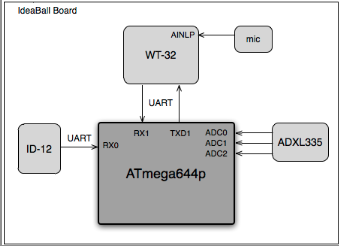

Screen Shot 2012-01-15 at 4.21.30 PM.png
The main components of the IdeaBall are:


User Input: shake
User Feedback: visual, audio

IdeaBall Eagle Files and Firmware

IdeaBall Eagle Files IdeaBallFirmware

IdeaBallNavigator - Application

The IdeaBallNavigator aims to provide an overview of the meeting with audio playback, time-based and indexed navigation. It runs locally and is meant to be used by a single user.


IdeaBallNavigator Features:

  • Mac OS X 10.7
  • Application runs locally
  • Meaningful depiction - minimum processing
  • Color coded participant information allows visualization of turn taking and speaking time
  • Omnipresent timeline provides an overview of the brainstorming session and allows for fast navigation
  • Idea Authorship is guarded by rendering some information (such as speaking start-end time) unmodifiable


IdeaballNavigator Application

Attachments:
FileDescriptionFile sizeDownloadsLast modified
Download this file (IdeaBallNavigator.app.zip)IdeaBallNavigator.app.zipIdeaballNavigator App489 kB16582012-02-13 23:11
Download this file (ideaballEagle.zip)ideaballEagle.zipIdeaBall Eagle Files72 kB15892012-01-15 17:46
Download this file (ideaballFirmware.zip)ideaballFirmware.zipIdeaBallFirmware696 kB18622012-01-15 17:44
