FabScan - Affordable 3D Laser Scanning of Physical Objects

Bachelor thesis by Francis Engelmann, supervised by René Bohne
Also see the project on GitHub and Thingiverse.
Have a look at out FabScan Google Group.

Features

• A scan can be performed by one click.
• Export point clouds as PTS, PLY and PCD.
• Automatic generation of ready-to-print STL and SCAD.
• Complete Do-It-Yourself Projects. All the schematics for the parts are available for download.
• Hardware uses a rotating line laser and a turntable allowing automated 360degree scans.

News

• 12.03.2012 18:30 - Most of the assembly instructions are finished. If you think something is missing, please contact me!
• 10.01.2012 18:54 - Added .scad export to FabScan.
• 07.12.2011 17:37 - Continued work on Assembly Instructions. Updated the laser-cutter parts for the camera and laser holder.
• 03.12.2011 09:06 - Published source code on github
• 02.12.2011 14:26 - FabScan is exhibited at "Tag der Informatik"
• 30.11.2011 13:14 - started working on the FabScan Assembly Instructions
• 16.11.2011 13:19 - created a github repository for the FabScan project, complete sources will be added in the coming weeks
• 26.10.2011 13:40 - published first release of FabScan in a nice .dmg for Mac

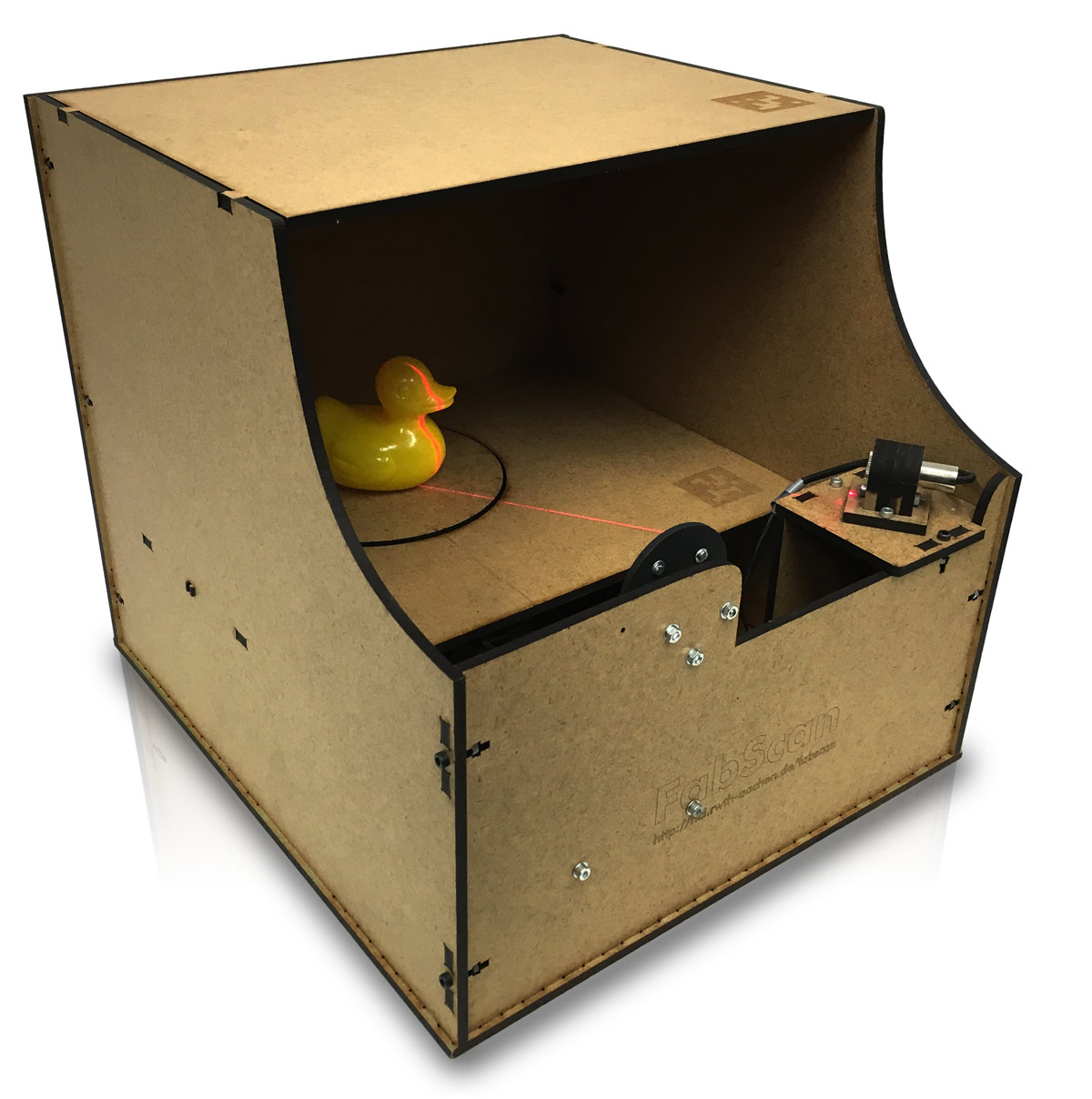

Build your own 3D scanner!

See the assembly instructions for the scanner.

Here are all the files provided to build your own copy of the FabScan.
(This files may become old, for latest version check the assembly instructions and github or thingiverse)
Lasercutter Parts
3DPrinter Parts
PCB Eagle Files

Needed Hardware Parts

1x Logitech Quickcam Pro 9000 http://www.logitech.com/de-de/support-downloads/downloads/business-products/devices/4597

1x Line-Laser here.
2x Stepper Motor http://www.watterott.com/de/Pololu-A4988-Schrittmotortreiber
2x Stepper Motor Driver http://www.pololu.com/catalog/product/1201
1x Arduino Uno http://arduino.cc/en/Main/arduinoBoardUno
6x MDF 5mm 30cmx60cm
60x M3 screws 16mm + nuts
12V power supply (2000mA or more)

It is possible to use a different webcam, although then the mounting needs to be changed. The webcam should support the UVC standard.

Feedback, Contact and Feature Requests

Please feel free to send an E-Mail to containing FabScan in the subject.

Download FabScan Logo: FabScanIcon.png

Presentation Slides of the FabScan 3D Scanner

Here you can download the slides of the presentations:
Proposal talk: proposal_engelmann2011-slides.pdf
Final talk: finalColloquium_engelmann2011-slides.pdf

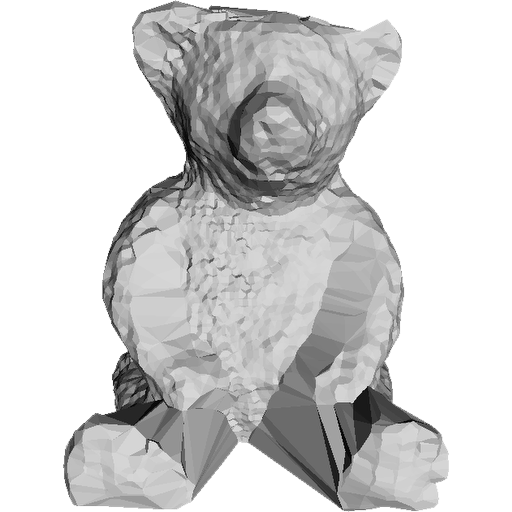

Mister Bear and his cloned brother scanned in the FabScan and 3d-printed with ABS plastic.

Version History of the different prototypes

Prototype 1

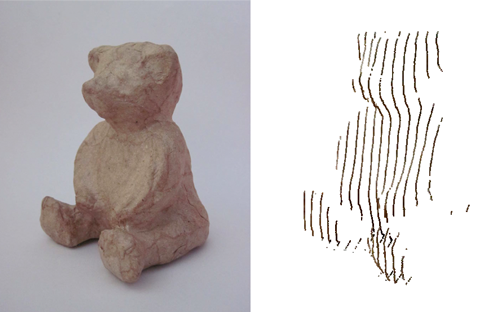

The point cloud generated by the first protoype.

Prototype 2

Some scanning results of second prototype, showing the generated pointcloud and one transformed into a mesh using powercrust algorithm.


Download the pointcloud for the duck:
duckHQ.pts File containing just the x y z coordinates of the points, without color.
duckHQ.pcd Point Cloud Data from PCL with color.

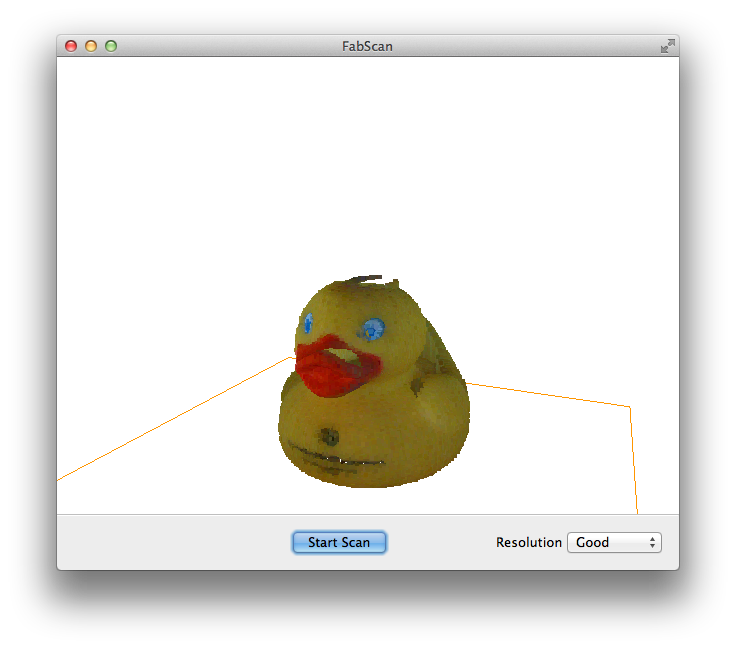

Screenshot of the GUI after a scan.

Prototype 3

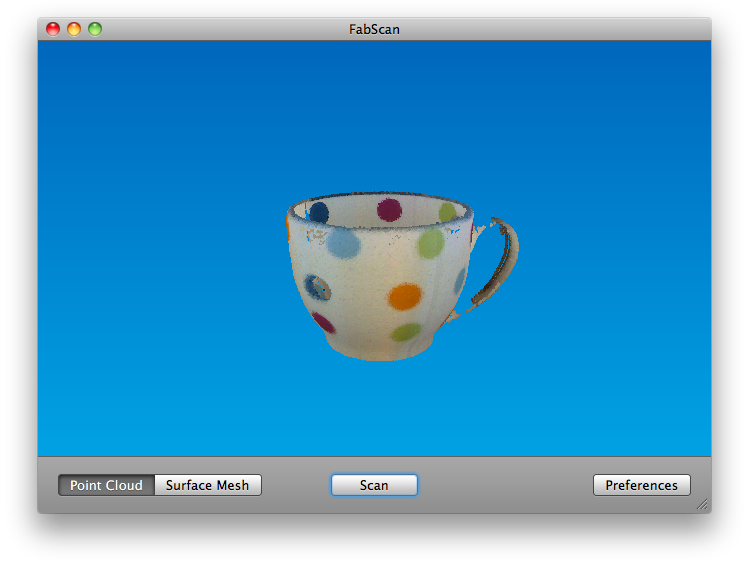

Moving the laser during a scan minimizes the laser shadow problem.
The scanning resolution for these scans was turned down in order to speed up the scanning process but the improved quality of the handle is clearly visible!

---
