FabriTouch: A Fabric Touchpad Integrated Into Clothing

FabriTouch

Project Background



Building Instructions to integrate the sensor onto a piece of cloth

  • Mark the sensing area

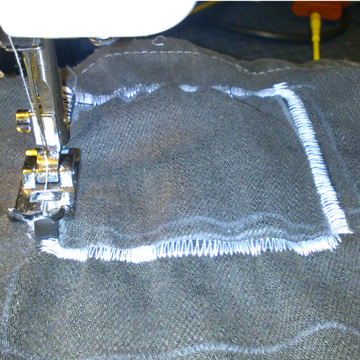

  • Sew raised borders on the front of the supporting fabric

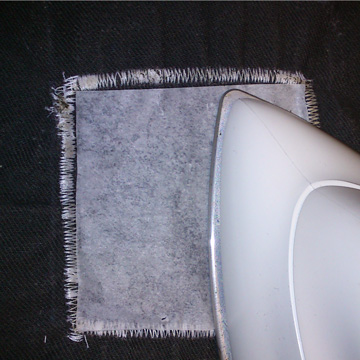

  • Apply glue on the back of the supporting fabric

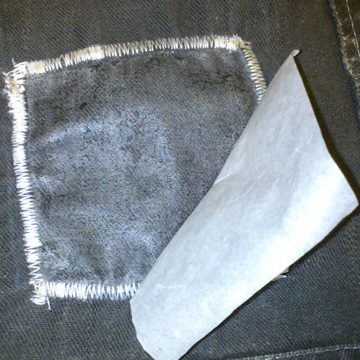

  • Remove the paper

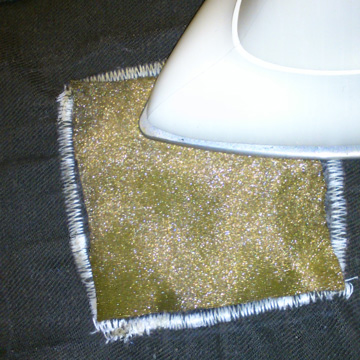

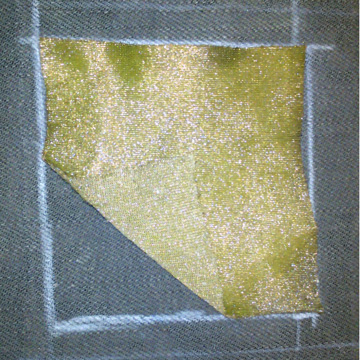

  • Glue the conductive fabric

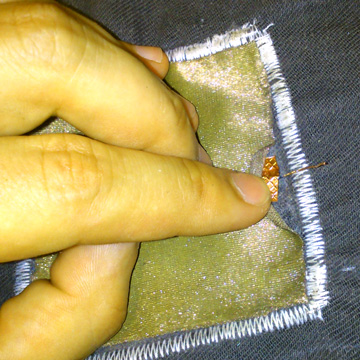

  • Attach the connection

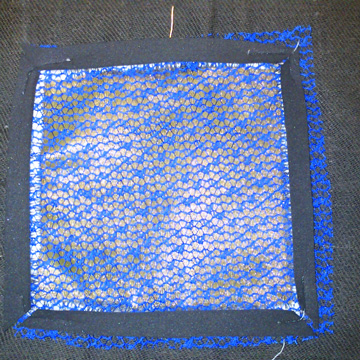

  • Add the textile mesh as spacing layer and the rubber outline

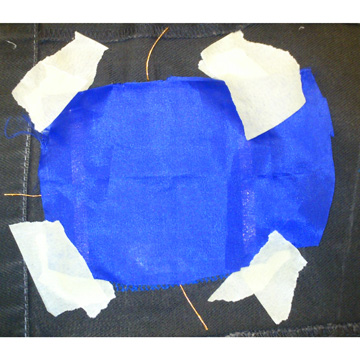

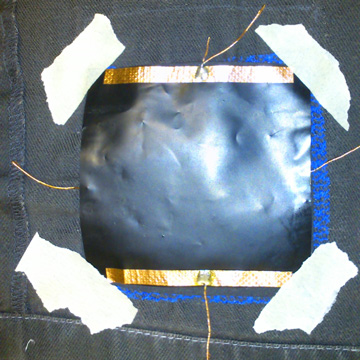

  • Add the piezoresistive foil with the sensor connections

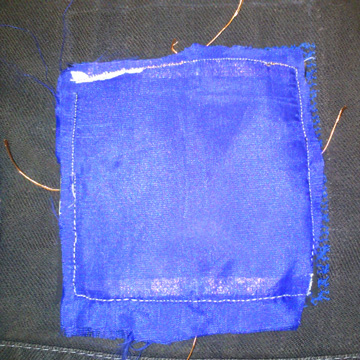

  • Add a layer of lining fabric

  • Sew the periphery on the front

  • Sewn sensor on the back

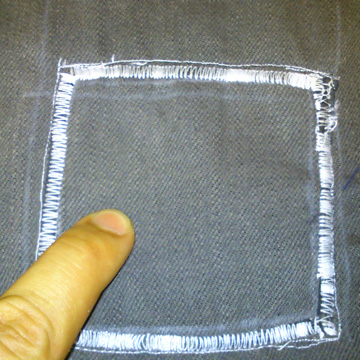

  • Sewn sensor on the front
