FabArcade Shield

back to FabArcade main page






This shield connects your Arduino to the joystick, buttons, and the coin acceptor of your FabArcade. Since the switches and the joystick use faston connectors, we decided to have the same connector on this shield. Every I/O pin of the Arduino is connected to one faston connector and we added the same amount of faston connectors connected to ground.

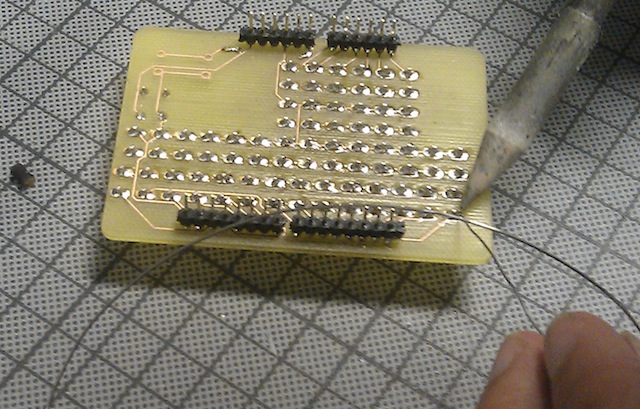

It is a single-sided PCB layout that can be milled on a PCB milling machine.
If you want to connect the screw terminal to the Vin of your Arduino, you need to add the 0 Ohm resistor R1. Otherwise, leave it open.

Eagle files



Created by bohne. Last Modification: Monday 19 of August, 2013 19:08:07 by borchers.
